LT5GEO Single-Use External Probe Cellular Temperature and Humidity Data Logger

  1. LogTag
  2. Logger Operation
  3. Getting Started



Use this guide to register your logger, set alarm limits, start recording, and retrieve data from your LT5GEO External Probe cellular logger.

The LT5GEO External Probe records temperature, light, shock, and location data, then uploads it to LogTag® Online over the cellular network so recorded data can be viewed remotely.


Select the task below that matches what you need to do.

Register the logger and set alarm limits



Start Recording



Reviewing Your Data

Use Register the logger and set alarm limits to set up the logger before its first use and choose the temperatures that should trigger alerts.

Use Start Recording when you have the logger in hand before monitoring begins. Charge the logger, connect the external probe, and start recording.

Use Reviewing Your Data to find recorded data in LogTag® Online, check the logger LEDs, or retrieve data when you need it now.

Product Overview

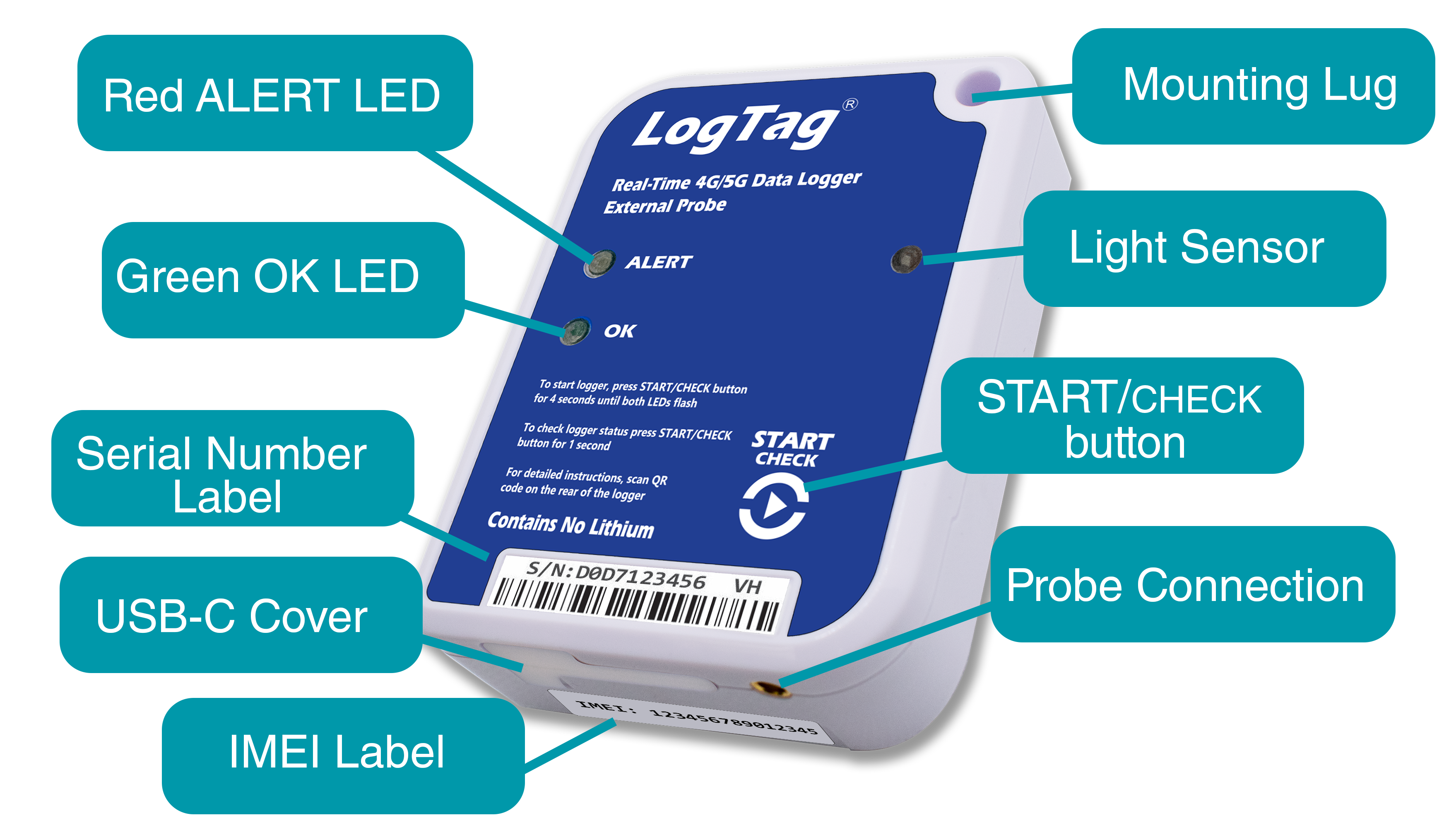

Use the images below to identify the main parts of the LT5GEO External Probe logger. The serial number is on the label at the front of the logger and is required when registering the logger in LogTag® Online.

During use, the OK LED generally indicates the logger status is OK, while the Alert LED means the data or logger status should be reviewed. For the full LED meanings, see Check the Logger's LEDs.

Front

Rear

Model Label

Bottom

IMEI Label

IMEI label
Accessories

Package Contents

  • LT5GEO External Probe cellular logger
  • Adhesive mounting strip (pre-attached to the logger)
  • Safety card

You supply

  • Charging cable (USB-C to USB-A or USB-C to USB-C) to fit charger
  • Compatible, high-quality 5V/1A USB power supply for battery charging (alternatively, use a charger with a fixed USB-C cable)
  • LogTag® Online account, set up for the monitoring workflow you need
  • PC or smart device connected to the internet to set up the logger
  • Compatible external probe

The external probe is the temperature sensor for the LT5GEO External Probe logger. If you do not already have a compatible probe, the options below are commonly used with this logger. This is not a complete list, so your probe may still be compatible even if it is not shown here. For the full range, see our External Probe Brochure.

Smart Probes

Precise and reliable, Smart Probes can be swapped out and calibrated separately from your LT5GEO External Probe logger. This reduces logging downtime and removes the need to return or relocate the logger for calibration.

Order Code Exposed Tip Length Tip Diameter Cable Length
CP100K-15 65mm ø3.2mm 1.5m (4’11”)
CP100K-30 65mm ø3.2mm 3m (9’10”)

Standard Probes

Order Code Exposed Tip Length Tip Diameter Cable Length
ST100K-15 65mm ø3.2mm  1.5m (4’11”)
ST100K-30 65mm ø3.2mm 3m (9’10”)
ST100S-15 22.5mm ø5mm 1.5m (4’11”)
ST100S-30 22.5mm ø5mm 3m (9’10”)
Compliance and Safety

Safety Information - Please read carefully

This device contains a wireless radio transmitter module (BG95-M3) which has been tested and complies with the rules and regulations mandated by the FCC, IC RSS-210, CE, UKCA and SRRC for intentional transmitters.

Hereby, LogTag® North America Inc declares that the device designated LT5GEO containing this transmitter module is in compliance with:

  • Directive 2014/53/EU
  • Radio Equipment Regulations SI2017/1206
  • FCC 47 CFR Part 15 - Radio Frequency Devices

For the full text of these declarations, please refer to the Declaration of Conformity.

Any limits specified in these regulations typically are designed to provide reasonable protection against harmful effects in approved installations, although there is no guarantee that interference will not occur in particular circumstances.

This equipment generates, uses, and radiates radio frequency energy and, if not installed and used as defined in the instructions, can cause harmful interference to radio communications.

Operation is subject to the following conditions:

  • The device is not suitable for use by children.
  • Firmware in the device must not be replaced unless specifically authorized by LogTag® or its authorized representative.
  • No end-user serviceable items are present inside the device. Disassembling, modifying or making any changes to the device, including but not limited to the device’s firmware, without express approval by the manufacturer will render this certificate invalid and void your authority to operate the device.
  • The device is fitted with a SIM card in the factory, which must only be replaced by LogTag® or its authorized representative.
  • The device is not approved for hand-held operation. The safe user distance, for RF exposure, is ≥ 20 cm.

For further details on the safe operation of the device please refer to the full product user guide.

Technical Compliance Information

The LT5GEO contains a wireless transmitter/receiver module with the following technical specifications:

Module ID: BG95-M3
Wireless Standards: LTE Cat M1
Cat NB2
EGPRS
Operating Frequency Range GSM 900 880-915, 925-960 MHz
  GSM 1800 1710-1785, 1805-1880 MHz
  LTE FDD Band 1 1920-1980 MHz, 2110-2170 MHz
  LTE FDD Band 3 1710-1785, 1805-1880 MHz
  LTE FDD Band 8 880-915, 925-960 MHz
  LTE FDD Band 20 832-862, 791-821 MHz
  LTE FDD Band 28 703-748, 758-803 MHz
  GPS receiver 1559-1610 MHz
  GLONASS receiver 1559-1610 MHz
  BDS receiver 1559-1610 MHz
  Galileo receiver 1559-1610 MHz
Maximum Output Power GSM 900 33 dBm rated
  GSM 1800 30 dBm rated
  LTE FDD Band 1 21 dBm rated
  LTE FDD Band 3 21 dBm rated
  LTE FDD Band 8 21 dBm rated
  LTE FDD Band 20 21 dBm rated
  LTE FDD Band 28 21 dBm rated

LTE is a trademark of ETSI.

Galileo is a trademark registered to the European Union.

Other trademarks, product, service and company names mentioned may be the property of their respective owners.

Quick Start

Watch the tutorial below to see how to set up and use your LT5GEO in video format. You can get additional information from the product's user guide.



Register the Logger and Set Alarm Limits

Use this section to set up the logger before monitoring begins. Choose the setup option that matches how the logger will be used. Use fridge/freezer monitoring if the logger will monitor a fridge, freezer, or other fixed location. Use shipment monitoring if the logger will travel with goods in transit.

Register and Set Alarm Limits for Fridge/Freezer Monitoring

To set alarm limits and view real-time data from an LT5GEO External Probe logger monitoring a fridge, freezer, or other fixed location, you need to add the logger to a Location in LogTag® Online. Assigning the logger to a Location makes it easy to find the data you need and enables instant notifications when an alarm is triggered. Free accounts receive email notifications. Paid accounts can also receive voice call, SMS, and WhatsApp notifications. This can be done before or after the logger is started.

  1. Visit https://logtagonline.com/login and sign in to your LogTag® Online Fixed Site (VFC) User account. If you do not already have one, create a free account and select “Fixed Site (VFC) User” as the “Team Profile Type”.

    If you cannot see "Locations" in the bottom navigation bar, your team is not set up as a "Fixed Site (VFC) User".

    In this case, your team owner will need to open the account menu by clicking your profile name in the top right corner of your screen. Then click "Manage Team", click the "Team" tab and change the "Team Profile" to "VFC User".

    Note: If you are not the team's owner, they have to do this for you.

  2. From your home screen, click  Add Device  in the top right of your screen and enter the logger's serial number. The serial number is on the label at the front of the logger. Enter a name for your device (optional) and click  Register Device .
  3. Click the "Locations" tab at the bottom of your screen, then click   Add a Location . Enter a name for the location and select your registered logger from the drop-down list.
  4. To set your alarm limits, select a Logger Configuration Profile you have used previously. Or select “Create new” to make a new one. This opens a new window where you can set the recording settings and alarm limits. Set the temperature limits you want you or your team to be notified about. These alarm limits are used by the logger and LogTag® Online to send alerts.
  5. Once all parameters have been entered, click  Save .
  6. In Team Details, select team members in your account you want to be notified when there is an alarm. The Primary coordinator should be the team member responsible for this location, they will be notified first.
  7. To customise your notification settings, like who will receive which alarm type and by what notification method, click  Edit Notifications  and select your preferences. Click  Save .
  8. When you are happy with your location settings, Click   Save .
  9. Your logger will start uploading data to LogTag® Online when it connects to the cellular network. The first connection to LogTag® Online requires the logger to register with your local carrier network. This can take time and delay the first data upload.

You can find detailed instructions with reference images here.



↑ Back to top    ↑ Back to Register and Set Alarm Limits

Register and Set Alarm Limits for Shipment Monitoring

To set alarm limits and view real-time data from an LT5GEO External Probe logger traveling with goods, add the logger to a Shipment in LogTag® Online. Adding the logger to a Shipment makes it easy to find the trip data and enables instant notifications when an alarm is triggered. Free accounts receive email notifications. Paid accounts can also receive voice call, SMS, and WhatsApp notifications. This can be done before or after the logger is started.

  1. Visit https://logtagonline.com/login and sign in to your LogTag® Online Transit User account. If you do not already have one, create a free account and select “Transit User” as the “Team Profile” option.

    If you cannot see "Shipments" in the bottom navigation bar, your team is not set up as a "Transit User".

    In this case, open the account menu by clicking your profile name, then click "Manage Team". Click the "Team" tab and change the "Team Profile" to "Transit User".

    Note: If you are not the team's owner, they have to do this for you.

  2. Click "Shipments", then click   Create Shipment . Enter a name for the shipment, select the origin and destination. Enter an estimated journey time, or transmission interval. Changing the transmission interval (how often the LT5GEO sends data to LogTag® Online), will automatically update the estimated journey, and vice versa.

    Note: If an alarm is triggered, your LT5GEO will upload data to LogTag® Online regardless of the set interval.

  3. When finished, click  Next .
  4. Enter the logger's serial number and click  Add to shipment . The serial number is on the label at the front of the logger. You will see a pop up to create a new Configuration Profile to set your alarm settings. Give your profile a name, and set the limits you want you or your team to be notified about. These alarm limits are used by the logger and LogTag® Online to send alerts.
  5. Once all parameters have been entered, click  Save . If you have more loggers to add to this shipment, repeat step 4 again until all the loggers have been added. Then click  Create Shipment .
  6. Your logger will start uploading data to LogTag® Online when it connects to the cellular network. The first connection to LogTag® Online requires the logger to register with your local carrier network. This can take time and delay the first data upload.

You can find detailed instructions with reference images here.



↑ Back to top    ↑ Back to Register and Set Alarm Limits

Start Recording

Before monitoring begins, charge the logger, connect the external probe, start recording, and place the probe where the temperature needs to be monitored. Keeping the logger nearby lets you check its LEDs without opening the package or monitored space.

Charge the Logger

Charge the logger before use, even if it is new. Starting with a charged battery helps maximize recording duration.

  1. Remove the USB-C cover at the bottom of the logger.
  2. Plug the USB-C end of the charger cable into the logger's USB-C socket and supply power. We recommend you only use a high-quality charger from a reputable manufacturer.
  3. The logger indicates it is charging by turning on its red Alert LED.
  4. When fully charged, the green OK LED will permanently turn on.

Charging note: The logger will not charge when plugged into a PC's USB-C port. Use a compatible USB power supply instead.



↑ Back to top    ↑ Back to Start Recording

Connect the External Probe and Start the Logger

Connect the external probe securely before starting the logger. The external probe measures temperature, so the logger does not need to be placed inside the monitored package, fridge, freezer, or storage space. Keep the logger close enough for the probe cable to remain connected, and place the probe where the temperature needs to be monitored. This allows the logger to be checked without opening the package or monitored space.

Popular probes compatible with LT5GEO External Probe loggers can be found in the Accessories section.

For a full list of compatible probes, see our External Probe Brochure.



Press and hold the Start/Check button for 4 seconds. The green LED will turn on, indicating the charge level is OK. If the red LED turns on, charge the unit before continuing with the start procedure. Release the button when both LEDs flash in an alternating pattern. The logger will:

  • Connect to LogTag® Online and request any updates to its configuration data
  • Start recording environmental and positioning data and transmit this to LogTag® Online

Place the probe in the monitored area and secure the logger nearby. For transport use, the included adhesive strip can be used to secure the logger to the package or another solid surface.



↑ Back to top    ↑ Back to Start Recording

During Recording

Once started, the LT5GEO External Probe logger records temperature from the connected probe, plus light, shock, and location data.

If your logger is using external power, it will upload environmental data to LogTag® Online every 10 minutes.

If it is using the logger's internal battery, it will upload data every hour. When an alarm is triggered, the logger will attempt to upload data immediately.

To view your data in LogTag® Online, the logger should be added to a Location for fridge/freezer monitoring or to a Shipment for transport monitoring. This makes the recorded data much easier to find. Use the fridge/freezer setup steps or the shipment setup steps before monitoring begins.

While recording, the LEDs provide basic status information. See Check the Logger's LEDs for what the OK and Alert LEDs mean.



↑ Back to top    ↑ Back to Start Recording

Reviewing Your Data

Use this section to find recorded data in LogTag® Online, check the logger LEDs, or retrieve data when you need it now.

Review Shipment Data in LogTag® Online

To review your shipment data, log in to LogTag® Online and open the "Shipments" page. Open the shipment the logger was added to. Select the Chart tab to see the data plotted in a chart, or Report tab, to see the individual data points, and where to download a PDF report.



When LogTag® Online receives location data from your LT5GEO External Probe logger indicating it is inside the destination zone, the shipment will auto-complete after 14 days. There is no need to recover the logger. It will upload the final data, complete your shipment, and stop logging automatically for you.



If you choose to complete the shipment manually, click  Complete Shipment . Completing the shipment stops data collection for that shipment; it does not approve or release the goods. Review the recorded data and follow your organization's quality process.

If you need data that is not yet visible in LogTag® Online, follow the steps in Retrieve Data When You Need It Now.

Once the logger has stopped recording, please return it to a LogTag North America distributor for disposal, or have it refurbished for a fee.

↑ Back to top    ↑ Back to Reviewing Your Data

View Fixed-Site Fridge/Freezer Data

Use this section to view data from a logger assigned to a Location in LogTag® Online, such as a fridge, freezer, or other fixed monitoring point.

To view your data as it is uploaded, go to the Locations tab where you will see tiles for all your locations.

Click  Inspect  for the location you want to review. You will see your daily minimum and maximum recordings in a calendar view. To download a PDF report, click Report tab, then Logger Report, and your PDF report will be generated to review. Click  Download PDF  to download your PDF report. CSV reports can also be generated in the Chart tab.

Assigning the logger to a Location makes it easy to find the data you need in LogTag® Online. If you do not complete the required fixed-site setup steps, the logger can still record and upload data, but it will not be added to a Location.

↑ Back to top    ↑ Back to Reviewing Your Data

Check the Logger's LEDs

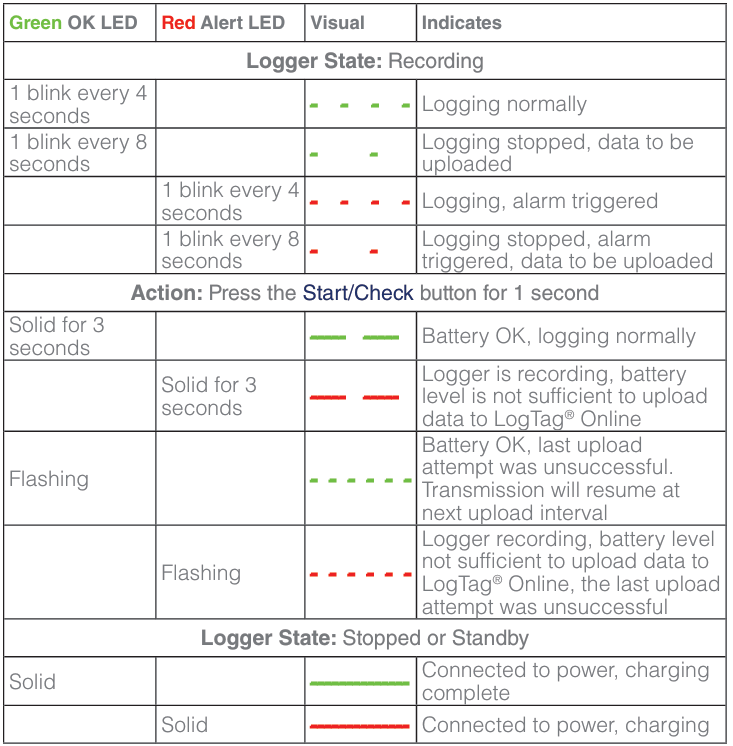

Use the LED status table below to understand what the green OK LED and red Alert LED mean while the logger is recording, stopped, on standby, or connected to power.

For a manual status check, briefly press the Start/Check button for one second, then compare the LED pattern to the table.

If no LEDs light: Charge the logger, then press the Start/Check button to transmit using the cellular network. If you need the recorded data immediately, use the LogTag® ResQ Upload Tool instructions.

↑ Back to top    ↑ Back to Reviewing Your Data

Retrieve Data When You Need It Now

If you need recorded data now and cannot see it in LogTag® Online, use the steps below to retrieve the data with the LogTag® ResQ Upload Tool or upload it using the cellular network.

  • If the data is needed immediately, open the LogTag® ResQ Upload Tool instructions in your PC's browser and follow the instructions. This requires you to connect the logger to a PC and download a small program that can extract the data from the LT5GEO External Probe logger and upload it to LogTag® Online via your internet connection.

  • To upload via the cellular network, charge the logger until the green OK LED lights up steadily. The green OK LED confirms the logger has enough battery power to transmit data. Remove the charger and press the Start/Check button to upload the data via the cellular network. The data will be available in LogTag® Online shortly after you press the button, provided there is cellular coverage.



↑ Back to top    ↑ Back to Reviewing Your Data
