HAXO-16BT Multi-use, Wireless Temperature and Humidity Data Logger

Use the drop-down tabs below to read additional information and technical data.

Use the below buttons to jump to the quick start guide section related to your role.

Setting up Your HAXO-16BT

View and Download Data

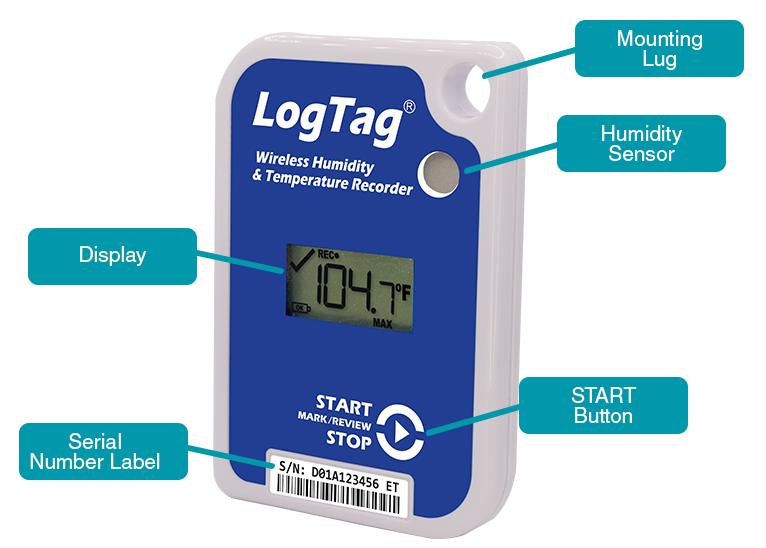

Product Overview

Package Contents

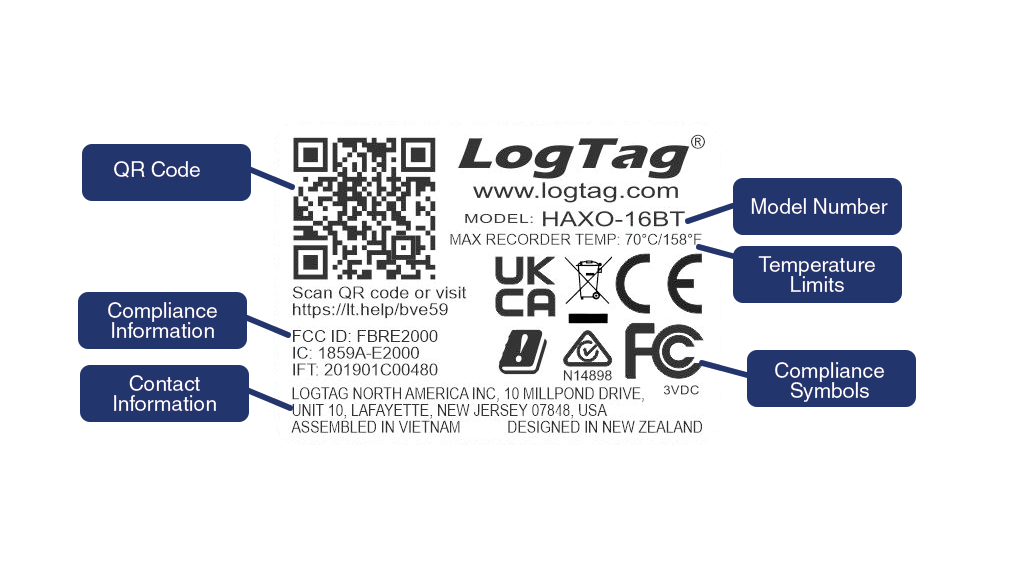

Product Characteristics

Requirements of EEC Directive 93/68

European directive 2012/19/EU on Waste Electronic Equipment (WEEE)

This device is marked according to European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the product, indicates that this device may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about your local city office, your local disposal service or the supplier where you purchased this device.

Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Industry Canada Statements
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Avis de conformité pour l'industrie Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

To comply with FCC and Industry Canada RF radiation exposure limits for general population, the logger must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

Quick Start

Watch the below tutorial to see how to set up and use your HAXO-16BT in video format. You can get additional information from the product's user guide.

Setting up Your HAXO-16BT

The Setting Up Guide consists of the following sections. Use the links below to jump to the section you need to read more about.

Download LogTag^® Link
Setting Up Remote Notifications and Reporting
Applying Alarm Settings
Starting Your HAXO-16BT

Download LogTag^® Link

To use the HAXO-16BT, you will need the latest version of the LogTag^® Link mobile app. The app is available on both the Apple App Store and Google Play Store. Click the buttons below or scan the QR codes to download the app.

Back to Start ▲ Back to Section Start▲

Setting Up Remote Notifications and Reporting (optional)

To set up remote alarms and automatic reporting, a paid LogTag^® Online account is required. A free LogTag^® Online account can also be used for secure, team access to data and reports online. LogTag^® Link will automatically upload data to your account.

If you do not have an account, go to www.logtagonline.com and create one.

For Transportation Monitoring:

Create a shipment in LogTag^® Online with origin and destination information, then add this logger to your shipment.

To do this, navigate to the Shipments menu by tapping the shipment icon located at the bottom of your screen then click the Create Shipment button.

Follow the on screen prompts to create your shipment.

For Continuous Monitoring:

Create a location in LogTag^® Online, then add this logger to your location.

To do this, you need to navigate to the Locations menu by tapping the Locations icon located at the bottom of your screen, then click the Add a Location button.

Follow the on screen prompts to create your location.

LogTag^® Link will now send your data and reports to your LogTag^® Online account, no matter who downloads your data. Paid accounts can add and assign team members to receive alerts and reports when data is uploaded. Click the Edit Notifications button when editing your shipment or location settings to select the team member in your account to receive notifications.

Note: To add team members to your account, click your name in the top right corner, select Manage Team, then Team. Add the email addresses of your team members to invite them to your account.

Back to Start ▲ Back to Section Start▲

Applying Alarm Settings

Open LogTag^® Link and tap the icon. Enter your LogTag^® Online account email and password.

To create your alarm settings, you first need a Configuration Profile.
1. Tap the CREATE button and name your profile.
2. Adjust your alarm settings as required and tap SAVE .

Now you have your alarm settings saved, you need to apply them to your wireless HAXO-16BT logger.

1. Turn Bluetooth on your mobile device that is running LogTag^® Link.
2. If your logger’s screen is blank, press and hold the START button on the logger until APP displays on the screen. If your logger has STOPPED on the screen, you can skip this step.
3. In LogTag^® Link, tap CONFIGURE DEVICE and tap LOAD for the alarm settings you want to apply to your logger.
4. Select your logger’s serial number in the list. The Loading Configuration screen will display with a progress bar.

Note: Pressing the START button on your logger on the Load Configuration page will highlight the logger in green.

Note: If you have multiple loggers that require the same alarm settings, tap during the Load Configuration screen. Select all the loggers you want to send the same settings to, then tap to apply your alarm settings.

Back to Start ▲ Back to Section Start▲

Starting Your HAXO-16BT

The default Start Mode in LogTag^® Link is On Configure, which starts the logger as soon as the alarm settings have been loaded to the logger. You can change this to Push Button, when creating your Configuration Profile.
In this case, your logger will display rdy.
1. Press and hold the START button. You will see STARTING appear. Continue to hold the START button until rdy disappears
2. Release the START button when rdy has disappeared. Your logger will then show that it is recording, and the first temperature reading.

Note: If your logger does not display rdy, you need to configure your logger first. See Configuring Your HAXO-16BT.

Back to Start ▲ Back to Section Start▲

View and Download Data

The View and Download Data Guide consists of the following sections. Use the links below to jump to the section you need to read more about.

View Data in LogTag^® Link
View Data on the HAXO-16BT Display
Stopping the HAXO-16BT
Downloading Your Data
View Data and Reports on Your Mobile

View Data in LogTag^® Link

Review the latest recording wirelessly through LogTag^® Link.
1. Open LogTag^® Link on your mobile device and tap FIXED ASSET under DATA.
2. Nearby loggers will appear in a list. Any device with an alarm will display with a red background.
3. Currently recording loggers will have an ACTIVE status.
4. To download your data from any of the listed loggers, tap on the logger serial number or name. The most recent temperature and humidity recording will display with the DOWNLOAD NOW button.
5. Your data and report will be automatically uploaded to the LogTag^® Online account the logger is registered to.

Back to Start ▲ Back to Section Start▲

View Data on the HAXO-16BT Display

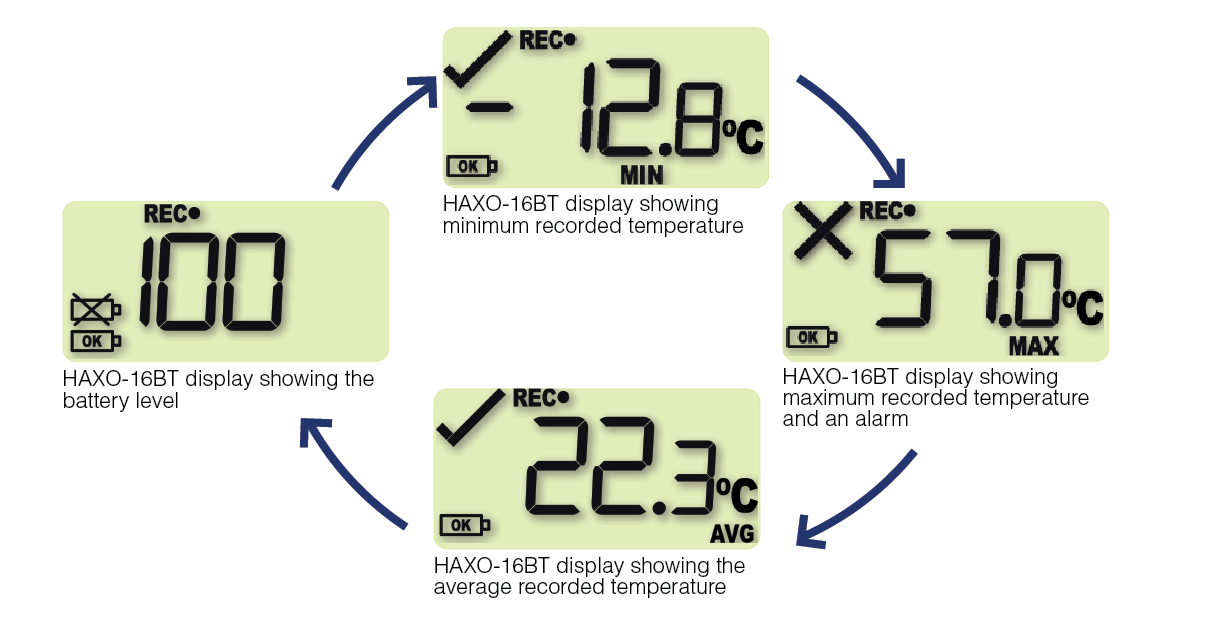

You can review the key statistics on the HAXO-16BT screen. The latest temperature recording and the alarm status will be displayed on a recording logger by default. Each press of the START button will display the next screen in the sequence.

Back to Start ▲ Back to Section Start▲

Stopping the HAXO-16BT

You can configure your logger to stop after data has been downloaded, or when the START button is pressed on the logger. The default setting is to stop the HAXO-16BT using the LogTag^® Link app. When the data is downloaded, there will be a Stop Monitoring button at the bottom of the screen. Tap this to stop the recording.

To stop the logger using the START button, you must enable the Stop Monitoring Button option in your alarm settings. With this setting, press and hold the START button. STOPPED will appear on the logger screen. Continue to hold until REC• disappears.

Your logger is no longer recording when the display matches the below.

Back to Start ▲ Back to Section Start▲

Downloading Your Data

Open LogTag^® Link on your mobile device and turn on Bluetooth.
2. Tap DOWNLOAD in the LogTag^® Link app, a list of nearby loggers will appear.
3. Tap on the logger serial number or name that you want to download.
4. You will then see the download screen, followed by a progress bar for the data upload to LogTag^® Online. When you see the success message the data and report are now available in your LogTag^® Online account.

If you do not have a stable internet connection when downloading data, the cloud upload failed icon will appear in the top right of the report page. To retry the upload, open the History tab when you are online again, then open the saved data to retry the upload.

Note: To download data from more than one logger, tap during the Download screen.
Select all the loggers you want to download data from, then tap to start the download.

Back to Start ▲ Back to Section Start▲

View Data and Reports on Your Mobile

When you download your data to your mobile device, the key statistics and chart will be displayed. This can be viewed again later in LogTag^® Link by opening the History tab, and selecting your logger's serial number or name.
To share the report or data when you are viewing the reports, tap at the bottom of your screen. Decide if you want a CSV or PDF report.

Choose which app on your mobile device you want to use to share it.

Back to Start ▲ Back to Section Start▲
